Aiguille industrielle · DBX1

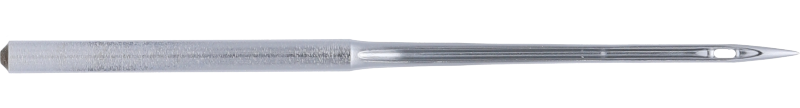

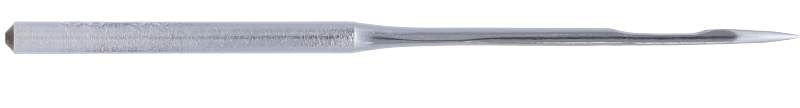

DBX1 SD Chromium

DBX1 SD Chromium
SystèmeDBX1
PointeSD
FinitionChromium
Tailles3

Point style SD - Cutting point Round point with polished triple cutting edges at the very end of the point • Slightly triangular cut in leather • Straight seam • Thread slightly elevated • Suitable for short to medium stitches Coating Chromium Needle with standard chrome coating. Recommended for: Thin leather Examples of use: Fine leather goods, Shoes, Embroidery on leather

Tailles disponibles

Taille (Nm)RéférenceLongueur totaleConditionnementPoids
80/12 779512 37.9 mm 100 pièces 0.771 g
90/14 785775 38.1 mm 100 pièces 0.775 g
100/16 769752 38.3 mm 100 pièces 0.797 g

Caractéristiques techniques

Shank diameter1.62 mm
Length butt to eye33.9 mm
CoatingChromium
Needle formA
Canu designation14:25
Catalog designation339162AC02SD
Further point designationsR-TRI
Further point designations 02SD 1
Further point designations 03TRI FACET
Further point designations 04TRI TIP
Technical sewing applicationDouble lock stitch
Stitch type class300
Recommended forThin leather
Examples of useFine leather goods, Shoes, Embroidery on leather
Point styleSD - Cutting point
Needle systemDBX1
Needle system familyDBX1
Customary needle designationsDBX1 SD
System designation 21738 SD
System designation 316X257 SD
System designation 416X231 SD
System designation 571X1 SD
System designation 6287 WH
System designation 7DBX257
Needle recommendationQuality choice
