Aiguille industrielle · B 64

B 64 RG Chromium

SystèmeB 64

PointeRG

FinitionChromium

Tailles9

Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Recommended for: Fine knitwear, Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers

Tailles disponibles

Taille (Nm)	Référence	Longueur totale	Conditionnement	Poids
70/10	700732	41.2 mm	100 pièces	0.855 g
75/11	700742	41.2 mm	100 pièces	0.855 g
80/12	700752	41.2 mm	100 pièces	0.873 g
90/14	700762	41.2 mm	100 pièces	0.884 g
100/16	700772	41.2 mm	100 pièces	0.905 g
110/18	700782	41.2 mm	100 pièces	0.928 g
120/19	700792	41.2 mm	100 pièces	0.763 g
125/20	755802	41.2 mm	100 pièces	0.95 g
130/21	750452	41.2 mm	100 pièces	0.985 g

Caractéristiques techniques

Shank diameter	2 mm
Length butt to eye	36.6 mm
Overall length	41.2 mm
Shank length	13.5 mm
Coating	Chromium
Needle form	B

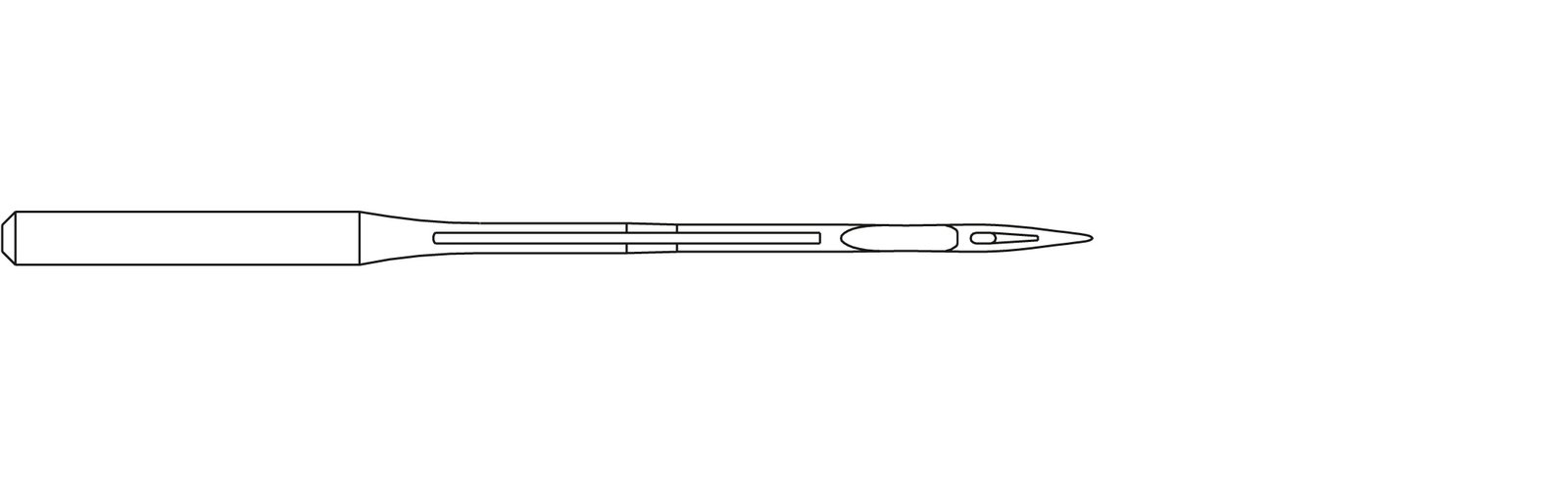

Needle form description	B1 – Straight needle with double groove and scarf
Canu point	R
Canu designation	26:30
Catalog designation	366200BC01RG
Further point designations	STU
Further point designations 02	STUB
Further point designations 03	S BALL
Further point designations 04	SET RT
Further point designations 05	EH
Further point designations 06	H SET
Further point designations 07	NEW RD
Further point designations 08	R STU
Technical sewing application	Double chain stitch
Stitch type class	400
Point style	RG - Cloth point
Needle system	B 64
Needle system family	B 64
Pack standard	N-S-00017 – Standard Packaging
Customary needle designations	TVX64
System designation 2	UY 120 GBS
System designation 3	UY 120 GTS
System designation 4	UY 192 GBS
System designation 5	UY 192 GTS
System designation 6	SY 7045
