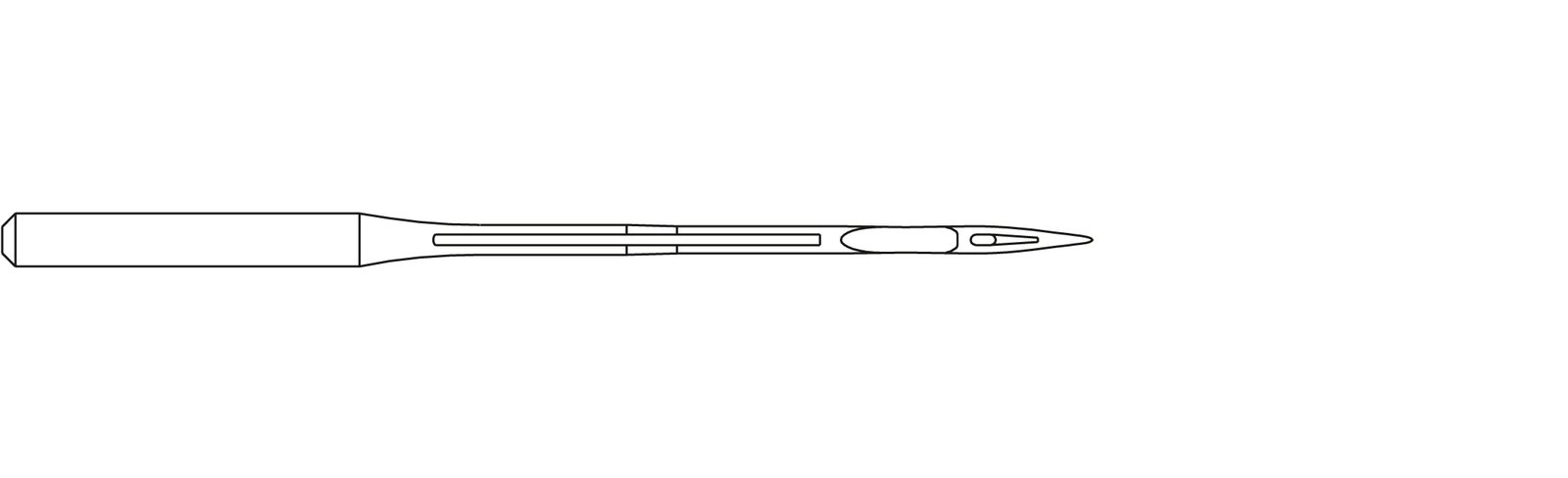

Aiguille industrielle · B 64
B 64 FG Chromium
B 64
FG
Chromium
2
Point style FG - Cloth point Medium ball point • Round point with medium ball • Suitable for loose-knit fabrics, elastic material and material containing rubber or elastane Coating Chromium Needle with standard chrome coating. Recommended for: Elastic fabrics Examples of use: Lace, Underwear, Bandages
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 70/10 | 700842 | 41.2 mm | 100 pièces | 0.855 g |
| 90/14 | 754612 | 41.2 mm | 100 pièces | 0.884 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 36.6 mm |
| Overall length | 41.2 mm |
| Shank length | 13.5 mm |
| Coating | Chromium |
| Needle form | B |
| Needle form description | B1 – Straight needle with double groove and scarf |
| Canu point | SUK |
| Canu designation | 26:30 |
| Catalog designation | 366200BC01FG |
| Further point designations | SUK |
| Further point designations 02 | B BALL |
| Further point designations 03 | M BALL |
| Further point designations 04 | SI |
| Further point designations 05 | BPM |
| Further point designations 06 | LAC |
| Further point designations 07 | R SUK |
| Further point designations 08 | U |
| Further point designations 09 | R KB |
| Technical sewing application | Double chain stitch |
| Stitch type class | 400 |
| Point style | FG - Cloth point |
| Needle system | B 64 |
| Needle system family | B 64 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | TVX64 B |
| System designation 2 | UY 120 GBS SUK |
| System designation 3 | UY 120 GTS SUK |
| System designation 4 | UY 192 GBS |
| System designation 5 | UY 192 GTS |
| System designation 6 | SY 7045 |
