Aiguille industrielle · B 63

B 63 FG Chromium

B 63 FG Chromium
SystèmeB 63
PointeFG
FinitionChromium
Tailles6

Point style FG - Cloth point Medium ball point • Round point with medium ball • Suitable for loose-knit fabrics, elastic material and material containing rubber or elastane Coating Chromium Needle with standard chrome coating. Recommended for: Elastic fabrics Examples of use: Lace, Underwear, Bandages

Tailles disponibles

Taille (Nm)RéférenceLongueur totaleConditionnementPoids
60/8 774422 43.7 mm 100 pièces 0.855 g
70/10 774442 43.7 mm 100 pièces 0.877 g
75/11 774452 43.7 mm 100 pièces 0.886 g
80/12 774462 43.7 mm 100 pièces 0.899 g
90/14 774472 43.7 mm 100 pièces 0.921 g
100/16 775422 43.7 mm 100 pièces 0.943 g

Caractéristiques techniques

Shank diameter2 mm
Length butt to eye38.9 mm
Overall length43.7 mm
Shank length13.5 mm
CoatingChromium

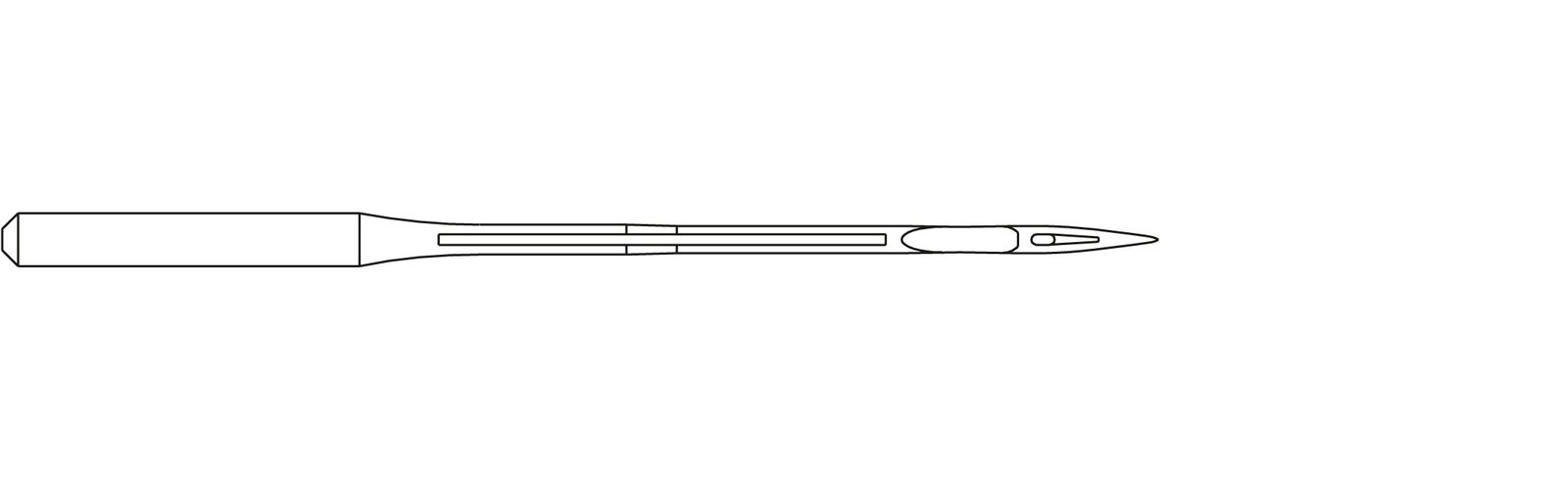

Needle formB
Needle form descriptionB1 – Straight needle with double groove and scarf
Canu pointSUK
Canu designation35:40
Catalog designation389200BC10FG
Further point designationsSUK
Further point designations 02B BALL
Further point designations 03M BALL
Further point designations 04SI
Further point designations 05BPM
Further point designations 06LAC
Further point designations 07R SUK
Further point designations 08U
Further point designations 09R KB
Technical sewing applicationDouble chain stitch, Cover chain stitch
Stitch type class400, 600
Point styleFG - Cloth point
Needle systemB 63
Needle system familyB 63
Pack standardN-S-00017 – Standard Packaging
Customary needle designationsDVX63 B
System designation 21280 KSP SUK
System designation 3UY 121 GAS SUK
System designation 4RMX63 B
System designation 5SY 7270
