Aiguille industrielle · B 27
B 27 SKL Chromium
B 27
SKL
Chromium
4
Point style SKL - Cloth point Special ball point (Elastane) • Very broad and heavily rounded point • Suitable for textiles with high elastane content Coating Chromium Needle with standard chrome coating. Recommended for: Warp-knitted fabrics with high elastane ratio Examples of use: Corsages, Orthopedic wear, Bandages
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 65/9 | 763962 | 33.1 mm | 100 pièces | 0.753 g |
| 70/10 | 763972 | 33.1 mm | 100 pièces | 0.769 g |
| 75/11 | 768082 | 33.1 mm | 100 pièces | 0.773 g |
| 80/12 | 763982 | 33.1 mm | 100 pièces | 0.776 g |
Caractéristiques techniques
| Shank diameter | 2.02 mm |
|---|---|
| Length butt to eye | 28.6 mm |
| Overall length | 33.1 mm |
| Shank length | 10 mm |
| Coating | Chromium |

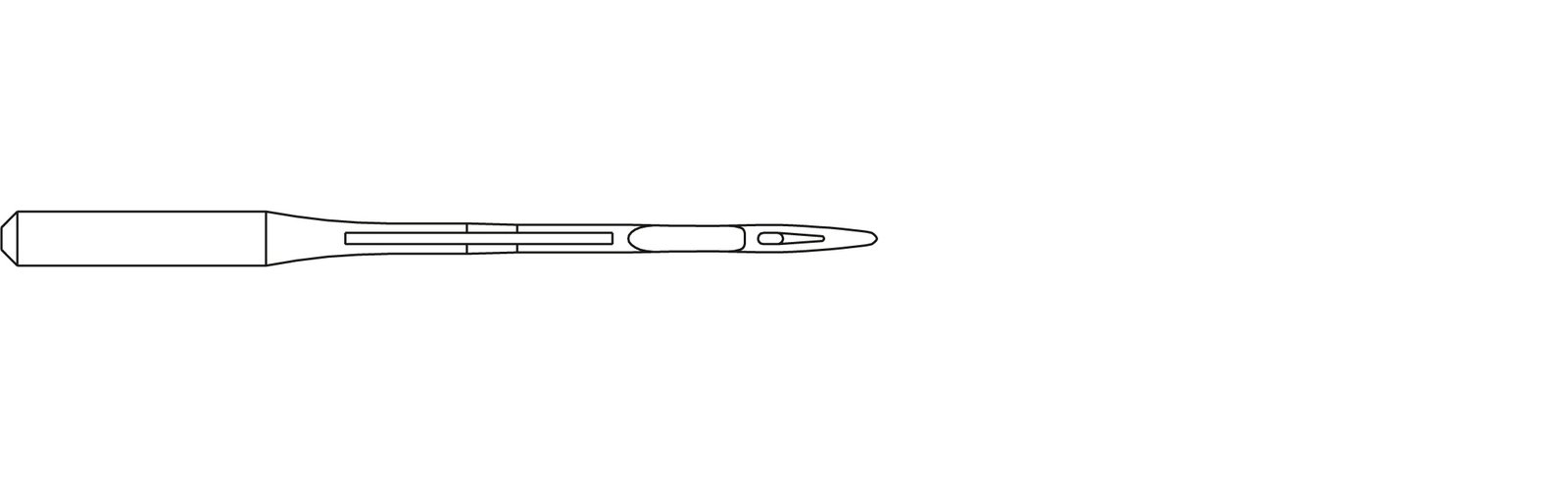

| Needle form | B |
| Needle form description | B1 – Straight needle with double groove and scarf |
| Canu point | SKL |
| Canu designation | 03:36 |
| Catalog designation | 286202BC01SKL |
| Technical sewing application | Overlock stitch |
| Stitch type class | 500 |
| Recommended for | Warp-knitted fabrics with high elastane ratio |
| Examples of use | Corsages, Orthopedic wear, Bandages |
| Point style | SKL - Cloth point |
| Needle system | B 27 |
| Needle system family | B 27 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | DCX27 SKL |
| System designation 2 | DMX1 SKL |
| System designation 3 | MY 1023 SKL |
| System designation 4 | RMX27 SKL |
| System designation 5 | 82X1 SKL |
| System designation 6 | SY 6120 |
