Aiguille industrielle · B 27

B 27 RG GEBEDUR™

SystèmeB 27

PointeRG

FinitionGEBEDUR™

Tailles8

Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating GEBEDUR™ Needle with titanium nitride coating for increased wear resistance. Its surface has a higher hardness compared to standard needles. This provides better protection against wear and abrasion, especially in the point and eye areas of the needle. Recommended for: Fine knitwear, Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers

Tailles disponibles

Taille (Nm)	Référence	Longueur totale	Conditionnement	Poids
60/8	773772	33.1 mm	100 pièces	0.741 g
70/10	773795	33.1 mm	100 pièces	0.751 g
75/11	773802	33.1 mm	100 pièces	0.77 g
80/12	773812	33.1 mm	100 pièces	0.766 g
100/16	773832	33.1 mm	100 pièces	0.789 g
110/18	773842	33.1 mm	100 pièces	0.809 g
120/19	773852	33.1 mm	100 pièces	0.825 g
140/22	782502	33.1 mm	100 pièces	0.875 g

Caractéristiques techniques

Shank diameter	2.02 mm
Length butt to eye	28.6 mm
Overall length	33.1 mm
Shank length	10 mm
Coating	GEBEDUR™

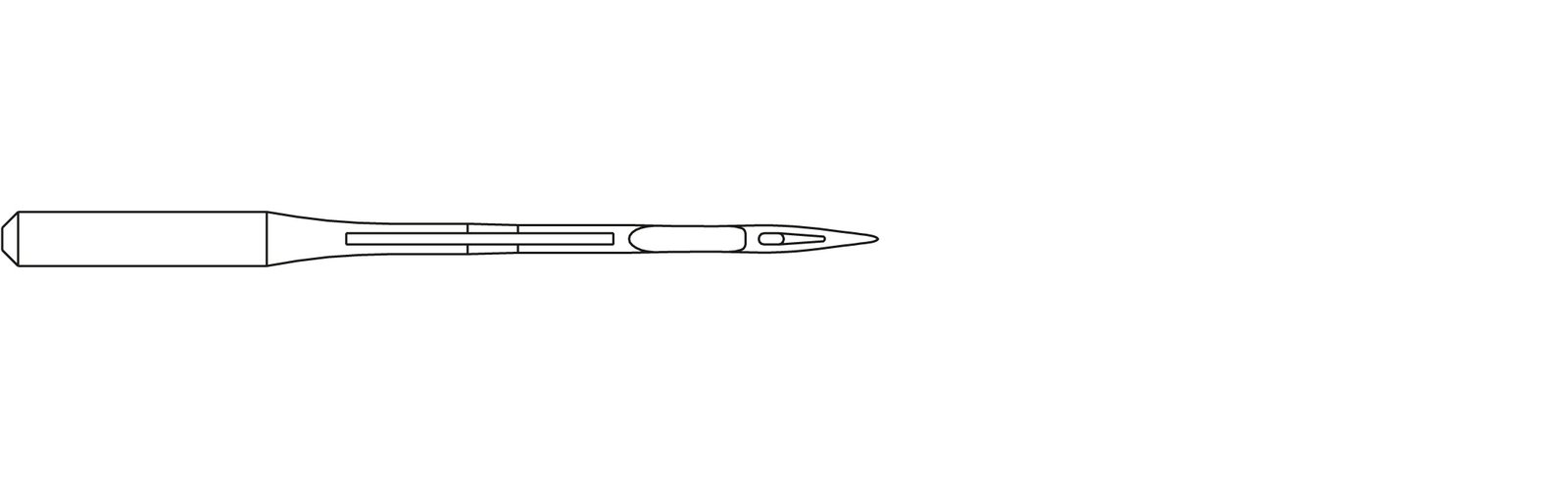

Needle form	B
Needle form description	B1 – Straight needle with double groove and scarf
Canu designation	03:36
Catalog designation	286202BD01RG
Further point designations	STU
Further point designations 02	STUB
Further point designations 03	S BALL
Further point designations 04	SET RT
Further point designations 05	EH
Further point designations 06	H SET
Further point designations 07	NEW RD
Further point designations 08	R STU
Technical sewing application	Overlock stitch
Stitch type class	500
Point style	RG - Cloth point
Needle system	B 27
Needle system family	B 27
Customary needle designations	81X1
System designation 2	DCX27
System designation 3	DCX1
