Aiguille industrielle · 4669 E EO
4669 E EO RS EM Chromium
4669 E EO
RS EM
Chromium
3
Point style RS EM - Cloth point Sharp and very slim point • Eccentric point (at 0°) • Exact piercing of the material Coating Chromium Needle with standard chrome coating. Special(s): Eccentric point at 0°, Square blade, Flat shank at 270° Recommended for: Woven fabrics Examples of use: Trousers, Suits
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 65/9 | 755592 | — | 100 pièces | 0.777 g |
| 80/12 | 755452 | — | 100 pièces | 0.804 g |
| 90/14 | 755602 | — | 100 pièces | 0.67 g |
Caractéristiques techniques
| Shank diameter | 2.01 mm |
|---|---|
| Length butt to eye | 38.6 mm |
| Shank length | 14 mm |
| Coating | Chromium |
| Needle form | N |

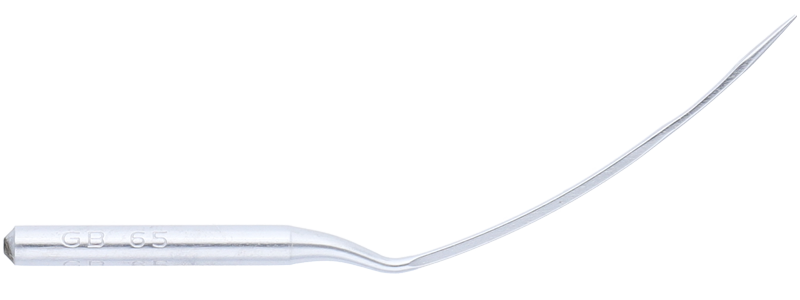

| Needle form description | N – Curved needle with one flat on the shank and sidewise bent blade |
| Canu point | RS EM |
| Canu designation | 33:50 |
| Catalog designation | 386201NC06RS EM |
| Further point designations | EM |
| Further point designations 02 | EU |
| Further point designations 03 | LG G ECC SET |
| Technical sewing application | Blind stitch |
| Stitch type class | 100 |
| Special(s) | Eccentric point at 0°, Square blade, Flat shank at 270° |
| Recommended for | Woven fabrics |
| Examples of use | Trousers, Suits |
| Point style | RS EM - Cloth point |
| Needle system | 4669 E EO |
| Needle system family | 1669E EO / 4669E EO |
| Variant | 4669 E EO |
| Pack standard | N-S-00021 – Packaging 11 |
| Customary needle designations | 4669 E |
