Aiguille industrielle · 332
332 LR Chromium
332
LR
Chromium
6
Point style LR - Cutting point Cutting point • Cuts the leather in the sewing direction at an angle of 45°, slanted to the right • Thread: slight to moderate slant (leatherdependent), slightly elevated • Stitch holes easily visible • Suitable for short to medium stitches Coating Chromium Needle with standard chrome coating. Recommended for: Thin leather Examples of use: Leather clothing, Shoes, Accessories
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 90/14 | 731002 | 45.3 mm | 100 pièces | 0.925 g |
| 100/16 | 731012 | 45.4 mm | 100 pièces | 1.095 g |
| 110/18 | 731022 | 45.4 mm | 100 pièces | 1.089 g |
| 120/19 | 731032 | 45.4 mm | 100 pièces | 1.138 g |
| 130/21 | 731042 | 45.5 mm | 100 pièces | 1.132 g |
| 140/22 | 731052 | 45.5 mm | 100 pièces | 1.02 g |
Caractéristiques techniques
| Shank diameter | 1.98 mm |
|---|---|
| Length butt to eye | 38.9 mm |
| Shank length | 14.5 mm |
| Coating | Chromium |

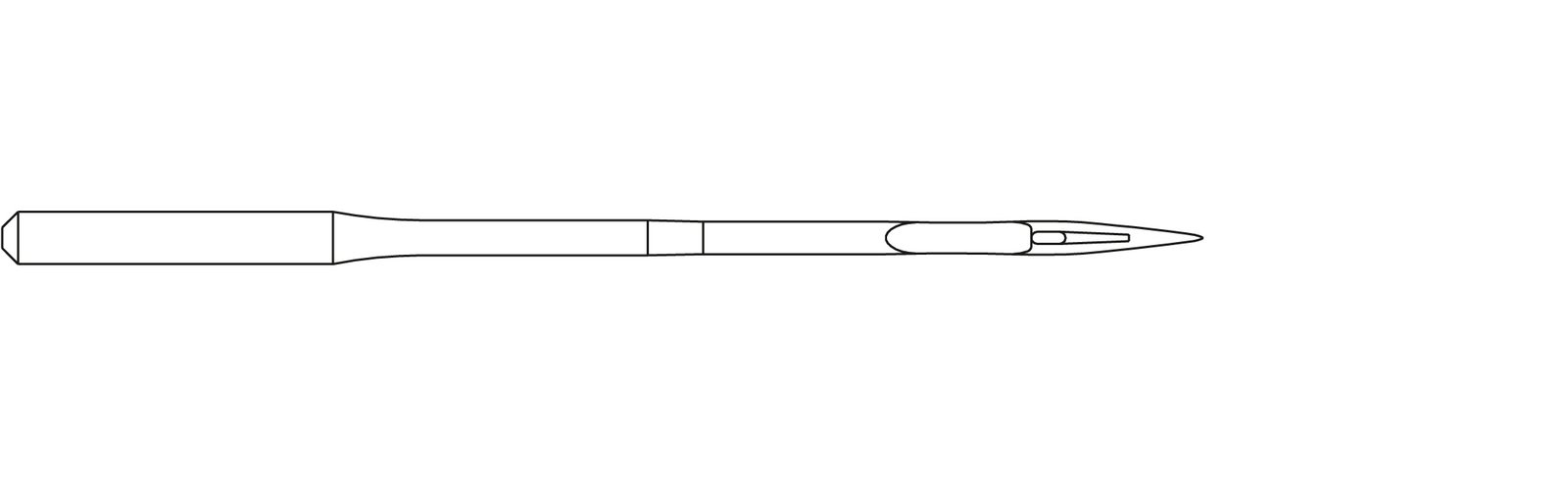

| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | LR |
| Canu designation | 35:15 |
| Catalog designation | 389198AC01LR |
| Further point designations | NRTW |
| Further point designations 02 | RTW |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Point style | LR - Cutting point |
| Needle system | 332 |
| Needle system family | 332 |
| Pack standard | N-S-00018 – Packaging 9 |
| Customary needle designations | DIX4 LR |
| System designation 2 | 022 LR |
| System designation 3 | 29X4 RTW |
| System designation 4 | 332 LR |
| System designation 5 | SY 3757 |
