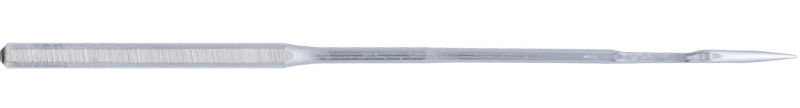

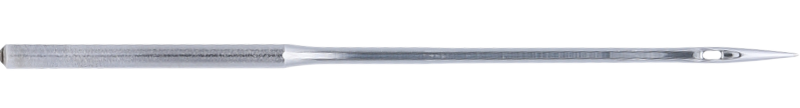

Aiguille industrielle · 328 FL-E
328 FL-E R Chromium
328 FL-E
R
Chromium
3
Point style R - Cloth point Normal round point • Slightly sharp point • Suitable for woven fabrics, coated materials, soft clothing leather and artificial leather • Standard point for lockstitch Coating Chromium Needle with standard chrome coating. Special(s): Flat shank at 270° Recommended for: Woven fabrics Examples of use: Mattresses, Blankets
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 110/18 | 759272 | 59.1 mm | 100 pièces | 1.266 g |
| 120/19 | 756812 | 59.3 mm | 100 pièces | 1.272 g |
| 130/21 | 756932 | 59.4 mm | 100 pièces | 1.315 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 52 mm |
| Coating | Chromium |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | R |
| Canu designation | 50:09 |
| Catalog designation | 520200AC04R |
| Further point designations | SET |
| Further point designations 02 | RD |
| Technical sewing application | Quilting |
| Stitch type class | 300 |
| Special(s) | Flat shank at 270° |
| Recommended for | Woven fabrics |
| Examples of use | Mattresses, Blankets |
| Point style | R - Cloth point |
| Needle system | 328 FL-E |
| Needle system family | 328 |
| Variant | FL-E |
| Pack standard | N-S-00018 – Packaging 9 |
| Customary needle designations | 2353 |
| System designation 2 | SY 4954 |
