Aiguille industrielle · 1671 E EO
1671 E EO RS EM Chromium
1671 E EO
RS EM
Chromium
5

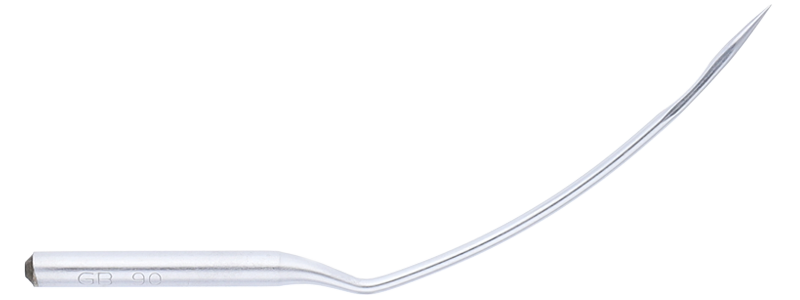

Point style RS EM - Cloth point Sharp and very slim point • Eccentric point (at 0°) • Exact piercing of the material Coating Chromium Needle with standard chrome coating. Special(s): Eccentric point at 0°, Flat shank at 270° Recommended for: Woven fabrics Examples of use: Trousers, Suits
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 70/10 | 754212 | — | 100 pièces | 0.658 g |
| 80/12 | 748122 | — | 100 pièces | 0.715 g |
| 90/14 | 723412 | — | 100 pièces | 0.696 g |
| 100/16 | 723422 | — | 100 pièces | 0.726 g |
| 110/18 | 723432 | — | 100 pièces | 0.919 g |
Caractéristiques techniques
| Shank diameter | 2.01 mm |
|---|---|
| Length butt to eye | 42.4 mm |
| Shank length | 14 mm |
| Coating | Chromium |
| Needle form | N |
| Needle form description | N – Curved needle with one flat on the shank and sidewise bent blade |
| Canu point | RS EM |
| Canu designation | 45:47 |
| Catalog designation | 424201NC01RS EM |
| Further point designations | EM |
| Further point designations 02 | EU |
| Further point designations 03 | LG G ECC SET |
| Technical sewing application | Blind stitch |
| Stitch type class | 100 |
| Special(s) | Eccentric point at 0°, Flat shank at 270° |
| Recommended for | Woven fabrics |
| Examples of use | Trousers, Suits |
| Point style | RS EM - Cloth point |
| Needle system | 1671 E EO |
| Needle system family | 1671E EO / 4671E EO |
| Pack standard | N-S-00021 – Packaging 11 |
| Customary needle designations | 1671 E |
| System designation 2 | 1671 ECH EO |
| System designation 3 | 1671 R |
| System designation 4 | 1671 RCH EO |
| System designation 5 | 1671 R EO |
| System designation 6 | 1671 RVO |
| System designation 7 | SY 7460 |
