Aiguille industrielle · 151X7
151X7 R Chromium
151X7
R
Chromium
7
Point style R - Cloth point Normal round point • Slightly sharp point • Suitable for woven fabrics, coated materials, soft clothing leather and artificial leather • Standard point for lockstitch Coating Chromium Needle with standard chrome coating. Recommended for: Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 80/12 | 721222 | — | 100 pièces | 0.785 g |
| 90/14 | 721242 | — | 100 pièces | 0.838 g |
| 100/16 | 721252 | — | 100 pièces | 0.808 g |
| 110/18 | 721262 | — | 100 pièces | 0.861 g |
| 120/19 | 721272 | — | 100 pièces | 0.84 g |
| 130/21 | 721292 | — | 100 pièces | 0.862 g |
| 150/ | 756252 | — | 100 pièces | 0.872 g |
Caractéristiques techniques
| Shank diameter | 2.02 mm |
|---|---|
| Length butt to eye | 29.1 mm |
| Shank length | 14 mm |
| Coating | Chromium |
| Needle form | M |

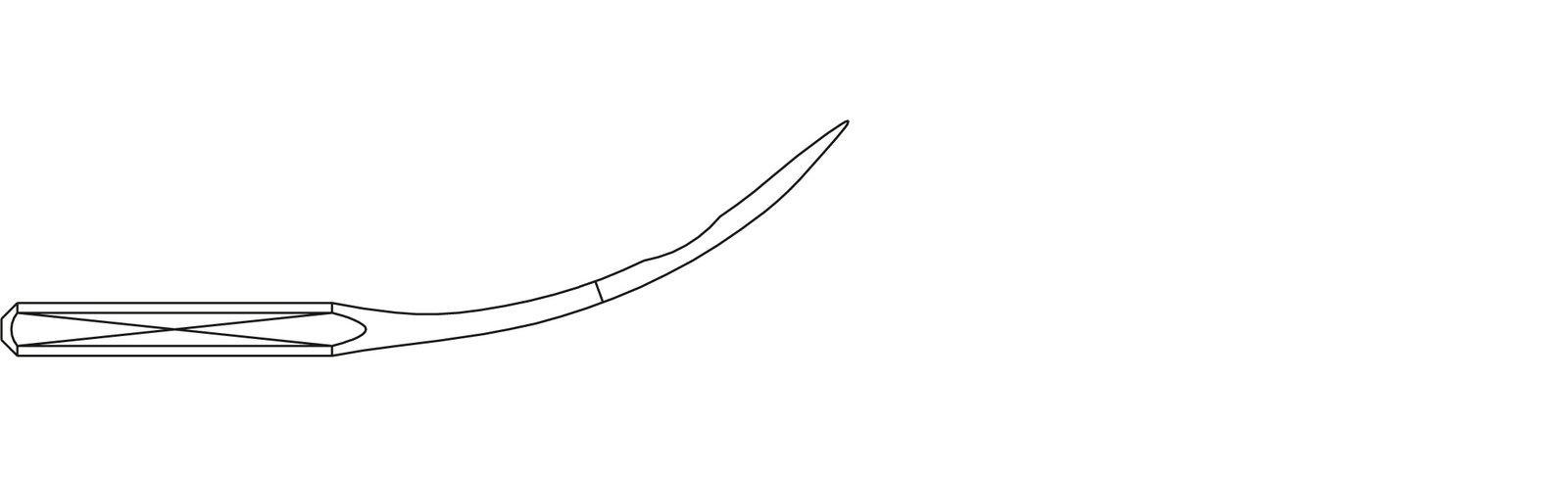

| Needle form description | M1 – Curved needle with one flat on the shank |
| Canu point | R |
| Canu designation | 04:25 |
| Catalog designation | 291202MC01R |
| Further point designations | SET |
| Further point designations 02 | RD |
| Technical sewing application | Overlock stitch |
| Stitch type class | 500 |
| Point style | R - Cloth point |
| Needle system | 151X7 |
| Needle system family | 151X7 |
| Pack standard | N-S-00021 – Packaging 11 |
| Customary needle designations | TLX1 |
| System designation 2 | TLX5 |
| System designation 3 | TLX7 |
| System designation 4 | 60 M |
| System designation 5 | 60 MH |
| System designation 6 | 60 MSD |
| System designation 7 | 151X1 |
| System designation 8 | 151X5 |
| System designation 9 | MY 1151 |
| System designation 10 | 1435 |
| System designation 16 | MERROW 2 SD T |
