Aiguille industrielle · 135X17 FK SAN 5
135X17 FK SAN 5 RG GEBEDUR™
Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating GEBEDUR™ Needle with titanium nitride coating for increased wear resistance. Its surface has a higher hardness compared to standard needles. This provides better protection against wear and abrasion, especially in the point and eye areas of the needle. Special(s): Flat shank at 180° Recommended for: Technical textiles, Woven fabrics Examples of use: Cushions, Airbags, Seat belts, Tents, Canvas covers, Foils, Plastic welts, Nets
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 140/22 | 774682 | 44.5 mm | 100 pièces | 1.066 g |
| 160/23 | 774692 | 44.7 mm | 100 pièces | 1.158 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 38.9 mm |
| Coating | GEBEDUR™ |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | R |
| Special application needle | SAN5 – SAN™ 5 for the processing of technical textiles |
| Canu designation | 37:20 |
| Catalog designation | 389200AD13RG |
| Further point designations | STU |
| Further point designations 02 | STUB |
| Further point designations 03 | S BALL |
| Further point designations 04 | SET RT |
| Further point designations 05 | EH |
| Further point designations 06 | H SET |
| Further point designations 07 | NEW RD |
| Further point designations 08 | R STU |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |

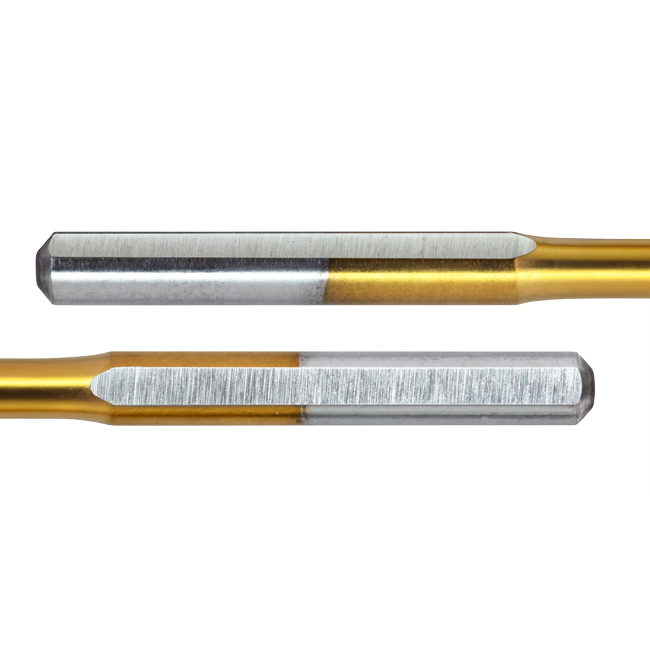

| Special(s) | Flat shank at 180° |
| Recommended for | Technical textiles, Woven fabrics |
| Examples of use | Cushions, Airbags, Seat belts, Tents, Canvas covers, Foils, Plastic welts, Nets |
| Point style | RG - Cloth point |
| Needle system | 135X17 FK SAN 5 |
| Needle system family | 135X17 |
| Variant | FK SAN 5 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | VERSION 5.2 |
