Aiguille industrielle · 134
134 S GEBEDUR™
134
S
GEBEDUR™
2

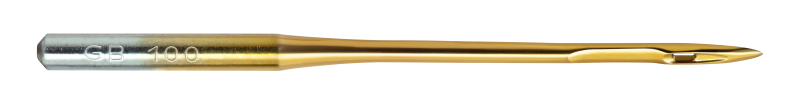

Point style S - Cutting point Cutting point • Cuts the leather in the sewing direction • Straight seam • Tight stitch formation with corresponding leather and stitch size • Stitch holes are elongated and clearly visible in the seam • Suitable for medium to large stitches Coating GEBEDUR™ Needle with titanium nitride coating for increased wear resistance. Its surface has a higher hardness compared to standard needles. This provides better protection against wear and abrasion, especially in the point and eye areas of the needle. Recommended for: Thin leather Examples of use: Leather clothing, Shoes, Accessories
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 90/14 | 760922 | 38.4 mm | 100 pièces | 0.887 g |
| 100/16 | 760932 | 38.6 mm | 100 pièces | 0.901 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 33.9 mm |
| Coating | GEBEDUR™ |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | S |
| Canu designation | 20:05 |
| Catalog designation | 339200AD01S |
| Further point designations | CR |
| Further point designations 02 | RSP |
| Further point designations 03 | NCR |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Recommended for | Thin leather |
| Examples of use | Leather clothing, Shoes, Accessories |
| Point style | S - Cutting point |
| Needle system | 134 |
| Needle system family | 134 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | 134 S |
| System designation 2 | PFX134 KS |
| System designation 3 | 135X8 NCR |
| System designation 4 | 797 S |
