Aiguille industrielle · 134
134 P Chromium
134
P
Chromium
1

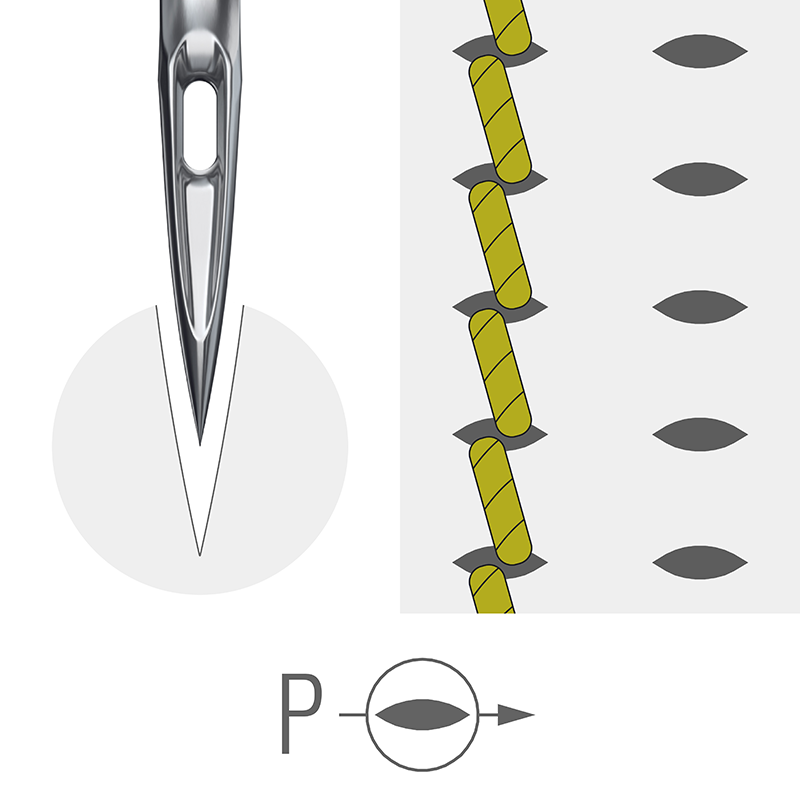

Point style P - Cutting point Cutting Point • Cuts the leather perpendicular to the sewing direction at an angle of 90° • Creates a prominent decorative effect on thick and hard leather due to the slanted thread position • Thread very deep-set • Stitch holes largely filled by the thread • Suitable for very short stitches Coating Chromium Needle with standard chrome coating. Recommended for: Thin leather Examples of use: Leather clothing, Shoes, Accessories
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 100/16 | 715242 | — | 100 pièces | 0.885 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Needle size Asia | 16 |
| Length butt to eye | 33.9 mm |
| Coating | Chromium |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | P |
| Canu designation | 20:05 |
| Catalog designation | 339200AC01P |
| Further point designations | NW |
| Further point designations 02 | PS |
| Further point designations 03 | SP |
| Further point designations 04 | V |
| Further point designations 05 | W |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Recommended for | Thin leather |
| Examples of use | Leather clothing, Shoes, Accessories |
| Needle size | 100 Nm |
| Point style | P - Cutting point |
| Needle system | 134 |
| Needle system family | 134 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | PFX134 P |
| System designation 2 | 134 PS |
| System designation 3 | 135X6 NW |
| System designation 4 | 135X6 W |
| System designation 5 | 135X8 NW |
| System designation 6 | 135X8 W |
| System designation 7 | 797 P |
| System designation 8 | 797 PS |
