Aiguille industrielle · 134
134 LR GEBEDUR™
134
LR
GEBEDUR™
4

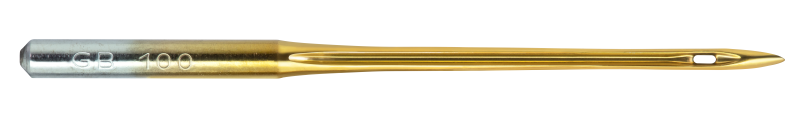

Point style LR - Cutting point Cutting point • Cuts the leather in the sewing direction at an angle of 45°, slanted to the right • Thread: slight to moderate slant (leatherdependent), slightly elevated • Stitch holes easily visible • Suitable for short to medium stitches Coating GEBEDUR™ Needle with titanium nitride coating for increased wear resistance. Its surface has a higher hardness compared to standard needles. This provides better protection against wear and abrasion, especially in the point and eye areas of the needle. Recommended for: Thin leather Examples of use: Leather clothing, Shoes, Accessories
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 100/16 | 760872 | 38.6 mm | 100 pièces | 0.714 g |
| 110/18 | 760882 | 38.7 mm | 100 pièces | 0.911 g |
| 120/19 | 760892 | 38.8 mm | 100 pièces | 0.903 g |
| 160/23 | 763892 | — | 100 pièces | 0.874 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 33.9 mm |
| Coating | GEBEDUR™ |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | LR |
| Canu designation | 20:05 |
| Catalog designation | 339200AD01LR |
| Further point designations | NRTW |
| Further point designations 02 | RTW |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Point style | LR - Cutting point |
| Needle system | 134 |
| Needle system family | 134 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | 134 LR |
| System designation 2 | PFX134 LR |
