Aiguille industrielle · 134

134 LL Chromium

Système134

PointeLL

FinitionChromium

Tailles10

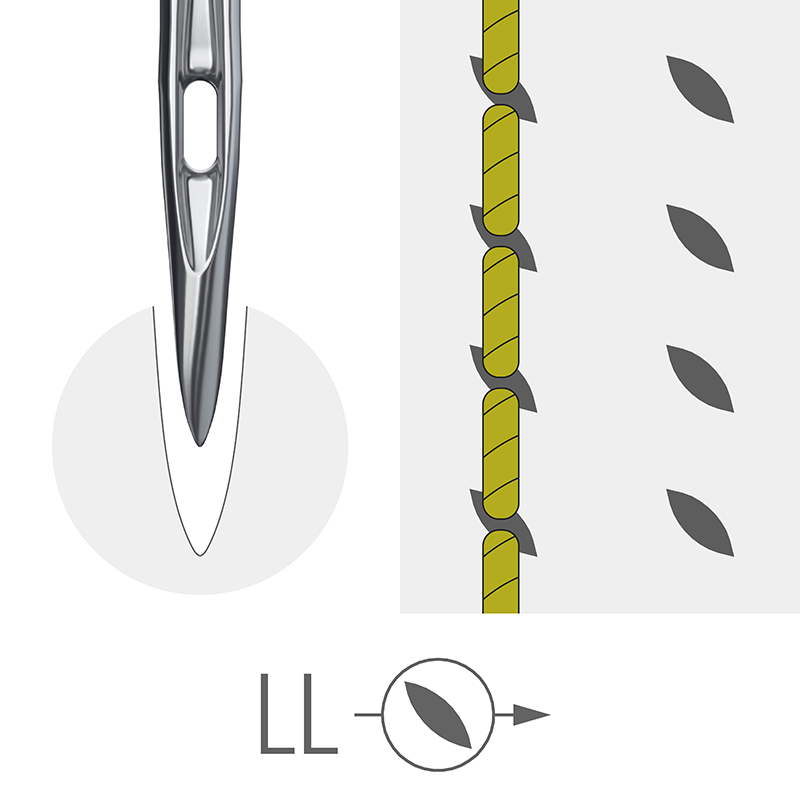

Point style LL - Cutting point Cutting point • Cuts the leather in the sewing direction at an angle of 45°, slanted to the left • Very straight seam position • Thread slightly elevated • Stitch holes largely filled • Suitable for short to medium stitches Coating Chromium Needle with standard chrome coating. Special(s): Point groove right Recommended for: Thin leather Examples of use: Leather clothing, Shoes, Accessories

Tailles disponibles

Taille (Nm)	Référence	Longueur totale	Conditionnement	Poids
70/10	714712	38.2 mm	100 pièces	0.852 g
75/11	754732	38.3 mm	100 pièces	0.85 g
80/12	714722	38.3 mm	100 pièces	0.902 g
85/13	751862	—	100 pièces	0.876 g
90/14	714732	38.4 mm	100 pièces	0.879 g
100/16	714742	38.6 mm	100 pièces	0.9 g
110/18	714752	38.7 mm	100 pièces	0.909 g
120/19	714762	38.8 mm	100 pièces	0.731 g
130/21	758252	38.9 mm	100 pièces	0.938 g
140/22	758262	39 mm	100 pièces	0.975 g

Caractéristiques techniques

Shank diameter	2 mm
Length butt to eye	33.9 mm
Coating	Chromium
Needle form	A
Needle form description	A1 – Straight needle with single groove and scarf
Canu point	LL CR
Canu designation	20:05
Catalog designation	339200AC04LL
Further point designations	NTW
Further point designations 02	TW
Further point designations 03	VL
Further point designations 04	TW SP
Technical sewing application	Double lock stitch
Stitch type class	300
Special(s)	Point groove right
Point style	LL - Cutting point
Needle system	134
Needle system family	134
Pack standard	N-S-00017 – Standard Packaging
Customary needle designations	PFX134 LL
System designation 2	MTX134 LL
