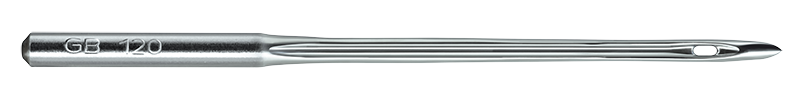

Aiguille industrielle · 134-35

134-35 SD Chromium

Système134-35

PointeSD

FinitionChromium

Tailles6

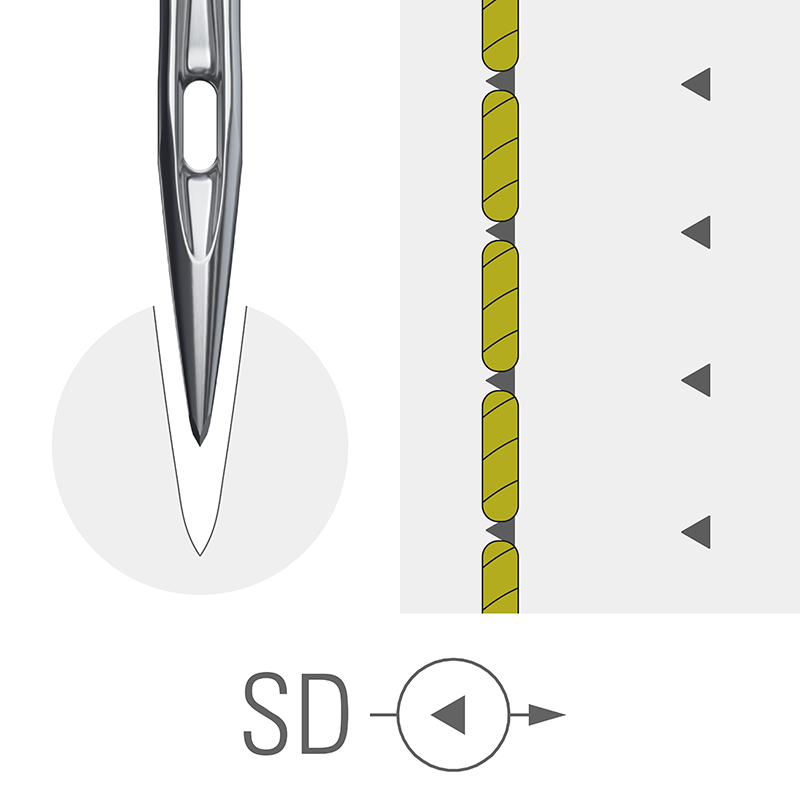

Point style SD - Cutting point Round point with polished triple cutting edges at the very end of the point • Slightly triangular cut in leather • Straight seam • Thread slightly elevated • Suitable for short to medium stitches Coating Chromium Needle with standard chrome coating. Recommended for: Thin leather Examples of use: Fine leather goods, Shoes, Embroidery on leather

Tailles disponibles

Taille (Nm)	Référence	Longueur totale	Conditionnement	Poids
100/16	754962	42.8 mm	100 pièces	1.172 g
110/18	754972	42.9 mm	100 pièces	0.941 g
120/19	754672	43 mm	100 pièces	0.971 g
130/21	771622	43.1 mm	100 pièces	0.994 g
140/22	767522	43.2 mm	100 pièces	1.039 g
160/23	771372	43.5 mm	100 pièces	1.12 g

Caractéristiques techniques

Shank diameter	2 mm
Length butt to eye	38.1 mm
Coating	Chromium

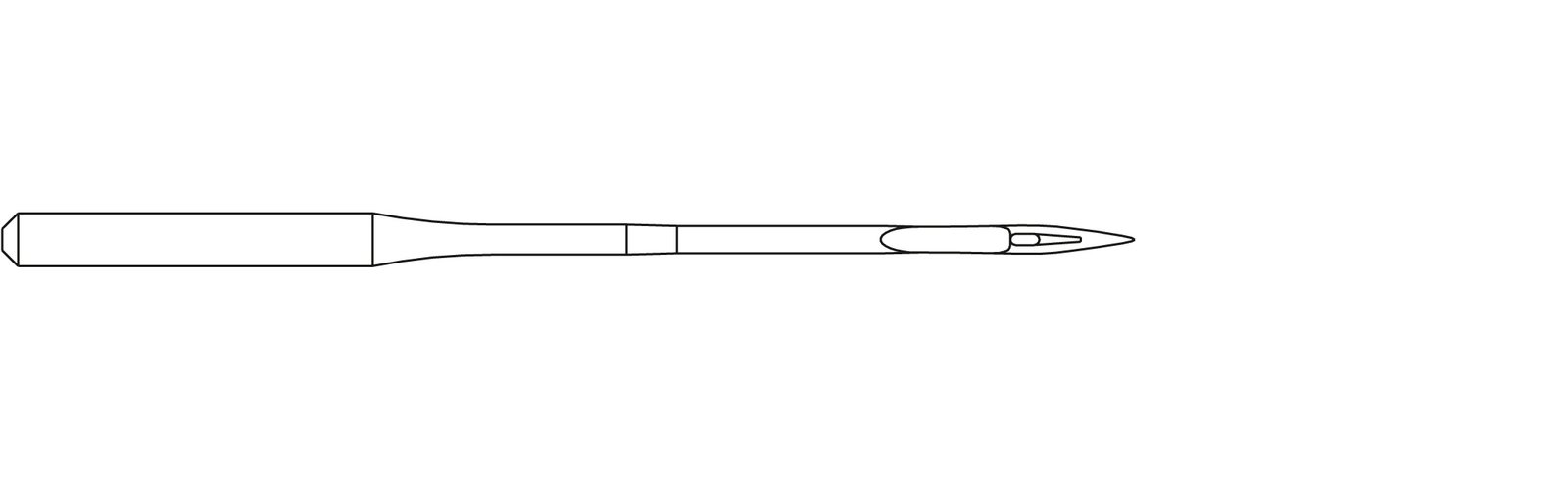

Needle form	A
Needle form description	A1 – Straight needle with single groove and scarf
Canu point	SD1
Canu designation	32:10
Catalog designation	381200AC01SD
Further point designations	R-TRI
Further point designations 02	SD 1
Further point designations 03	TRI FACET
Further point designations 04	TRI TIP
Technical sewing application	Double lock stitch
Stitch type class	300
Point style	SD - Cutting point
Needle system	134-35
Needle system family	134-35
Pack standard	N-S-00017 – Standard Packaging
Customary needle designations	DPX35 SD
System designation 2	134-35 R-SD1
System designation 3	134-35 TRI TIP
System designation 4	2134-35 SD
System designation 5	2134-35 SD1
System designation 6	2134-35 TRITIP
