Aiguille industrielle · 134-35

134-35 S Chromium

Système134-35

PointeS

FinitionChromium

Tailles9

Point style S - Cutting point Cutting point • Cuts the leather in the sewing direction • Straight seam • Tight stitch formation with corresponding leather and stitch size • Stitch holes are elongated and clearly visible in the seam • Suitable for medium to large stitches Coating Chromium Needle with standard chrome coating. Recommended for: Thin leather Examples of use: Leather clothing, Shoes, Accessories

Tailles disponibles

Taille (Nm)	Référence	Longueur totale	Conditionnement	Poids
90/14	717332	42.6 mm	100 pièces	0.911 g
100/16	717342	42.8 mm	100 pièces	0.928 g
110/18	717352	42.9 mm	100 pièces	0.941 g
120/19	753982	43 mm	100 pièces	0.971 g
130/21	717362	43.1 mm	100 pièces	1.005 g
140/22	754992	43.2 mm	100 pièces	1.023 g
160/23	717382	43.5 mm	100 pièces	1.11 g
180/24	768992	43.7 mm	100 pièces	1.17 g
200/25	769002	44 mm	100 pièces	1.11 g

Caractéristiques techniques

Shank diameter	2 mm
Length butt to eye	38.1 mm
Coating	Chromium

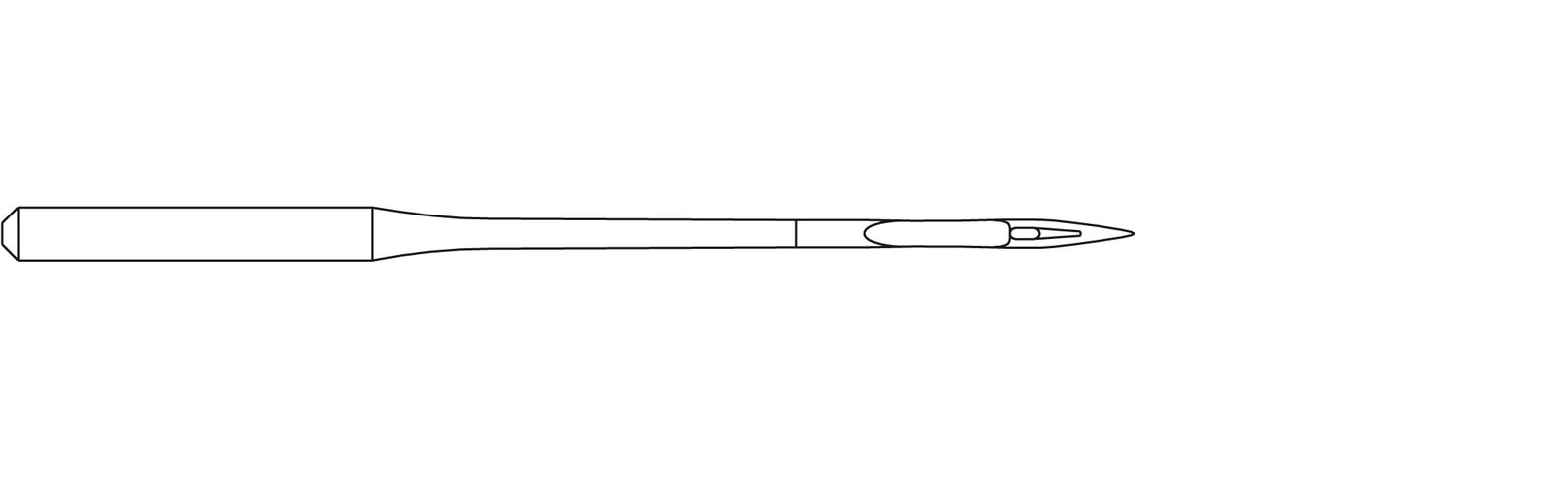

Needle form	A
Needle form description	A1 – Straight needle with single groove and scarf
Canu point	S
Canu designation	32:10
Catalog designation	381200AC01S
Further point designations	CR
Further point designations 02	RSP
Further point designations 03	NCR
Technical sewing application	Double lock stitch
Stitch type class	300
Point style	S - Cutting point
Needle system	134-35
Needle system family	134-35
Customary needle designations	DPX35 S
System designation 2	134-35 SS
System designation 3	2134-35 S
System designation 4	SY 7228
