Aiguille industrielle · 134-35
134-35 D GEBEDUR™
134-35
D
GEBEDUR™
1

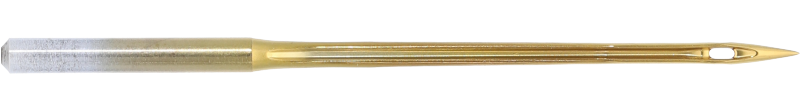

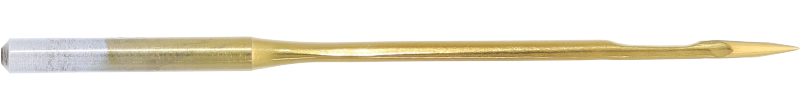

Point style D - Cutting point Cutting point • Wide triple-edge cut in leather • Straight seam • Thread slightly elevated • Stitch holes are wide open • Suitable for medium to long stitches Coating GEBEDUR™ Needle with titanium nitride coating for increased wear resistance. Its surface has a higher hardness compared to standard needles. This provides better protection against wear and abrasion, especially in the point and eye areas of the needle. Recommended for: Thick leather, Cardboard Examples of use: Belts (Trousers), Suitcases, Heavy shoes, Car seats, Cushions
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 200/25 | 763952 | 44 mm | 100 pièces | 1.082 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Needle size Asia | 25 |
| Length butt to eye | 38.1 mm |
| Overall length | 44 mm |
| Shank length | 12.5 mm |
| Coating | GEBEDUR™ |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | TRI |
| Canu designation | 32:10 |
| Catalog designation | 381200AD01D |
| Further point designations | TRI |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Recommended for | Thick leather, Cardboard |
| Examples of use | Belts (Trousers), Suitcases, Heavy shoes, Car seats, Cushions |
| Needle size | 200 Nm |
| Point style | D - Cutting point |
| Needle system | 134-35 |
| Needle system family | 134-35 |
| Pack standard | N-S-00857 – Packaging 39 |
| Customary needle designations | DPX35 D |
| System designation 2 | TV-F16 |
| System designation 3 | 2134-35 D |
| System designation 4 | SY 7230 |
